Release Notes - Link 2.12

Hotfixes

Hotfix 1: Fixed locking issue in Outbox stored procedure
Hotfix 2: Fixed monitor keeps suppressing.
Hotfix 3: Fixed Bizbrains Edifact Assembler (Microsoft) to take UNA and UNB values from the Partner in Link. (Error: No UNB segment is written - UNZ can't be written)
Hotfix 4: Performance enhancements for outgoing transport: Send orchestration no longer awaits delivery notifications (dehydrates) for dynamically configured one-way BizTalk send ports (acknowledgements are handled asynchronously).
Hotfix 5: Fixed an issue where edifact control-messages where not created, when using Link Edifact Disassembler instead of Microsoft.
Hotfix 6: Fixed an issue when generating Edifact CONTRL (CONTROL) Messages using Link edifact Assembler.
Hotfix 7: Partner contacts in mail-templates.
Hotfix 8: A new error-code is created when an error occurs in the XML disassembler.
Hotfix-9: Fixed: Schema validation not working when xml schema contains multiple root node definitions
Hotfix-10: Thottling and batch-size configuration regarding polling of originating system responses.
Hotfix-11: Fixed: Unable to use CDM based macros when using external itinerary framework.
Hotfix-12: Fix spelling error in permission: Developer_Action_ErrorCode_Create
Hotfix-13: Fixed: Bizbrains Edifact Disassembler not handling Control Messages correct.
Hotfix-14: Feature: Enable promotion of Format / Variant / Version from pre-disassembler
Hotfix-15: Fixed: Originating System - Status Response performance
Hotfix-16: Feature: Recursive debatching in custom xml disassembler.
Hotfix-17: Fixed: Issue with edifact control messages (infinite loop in SGLoop segments)
Hotfix-18: Feature: Persistence of run-time resolved transport configuration (outbound) to facilitate usage from asyncronous transport implementations.
Hotfix-19: Fixed: Issue with missing endpoint authentication for AS4.
Hotfix-20: Fixed: Xml disassemble errors where tracked as error code 0 (.net changes).
Hotfix-21: Fixed: Xml disassemble errors where tracked as error code 0 (DB changes).
Hotfix-22: Fixed: Various unique constrain issues regaring user groups.
Hotfix-23: Fixed: Using * as wildcard while configuring monitor item for monitoring document types.
Hotfix-24: Fixed: Invalid datetime sent in notification emails from Link monitor caused by timezone mismatch (UTC/local).
Hotfix-25: Fixed: Alerts not firing due to time zone mismatches (UTC/local).
Hotfix-26: Fixed: Documents for which error rules have been applied can't be deleted.
Hotfix-27: Fixed: When configurating polling locations, environment "Dev" allways showed up as default. Regardless of current environment.
Hotfix-28: Fixed: Maintainence job deleted documents that was marked as "Preserve for test".
Hotfix-29: Fixed: Error in ErrorRules job
Hotfix-30: Fixed potential type cast exception in MS edifact assembler.
Hotfix-31: Fixed: Support for UNOY in Edifact disassembler.
Hotfix-32: SFTP adapter updated to use ssh.net v. 2.0.1.0
Hotfix-33: Fixed: When using Seeburger edifact assembler with syntax version 4 UNB date used format YYMMDD instead of YYYYMMDD.
Hotfix-34: Fixed isues in EdiPortalSFTP adapter: Potentieal null-reference exception when using static send port. Potential error when using relative folder paths when FTP user don't have root access.
Hotfix-35: Added support for custom HTTP headers in HttpSend transport type (database changes).
Hotfix-36: Added support for custom HTTP headers in HttpSend transport type (code changes).
Hotfix-37: Added support for the %SourceFileName% macro in the EdiPortalSftpTransmitAdapter when running in static mode, regardless of whether the message comes from Link or Biztalk.
Hotfix-38: Fixed: Error in Link Adminstrations when multiple SQL Servers are added as same environment.
Hotfix-39: Remove async/await methods from AS4 to remove deadlocks in Biztalks thread-pool.
Hotfix-40: Adds the option to stop documents in Inbox and transfer them from Link2 to Link3 for further processing. Set dataowner-key: 'DoNotMoveToInbox' to 'true' to enable this feature.
Hotfix-41: {SourceFileName} macro support in mail-templates.
Hotfix-42: Include tags and proxy partner filters in partner search
Hotfix-43: X12: Ougoing interchange number included in GS segment.
Hotfix-44: X12: Implemented overwrite option on distribution for: ISA05, ISA06, ISA07, ISA08, GS02, GS03, GS08

Known issues

Breaking change in "Create Dataowner" script. Because of changes in the User tables, dataowner-scripts created before 2.11 can't run on a 2.11 installation and later.

Installer changes

New windows service introduced in 2.11:

Windows services will no longer be started automatically after installation (after 2.11).

It affects the following services:

  • Nemhandel Service
  • Monitor Service
  • Scheduler Service

New Features

FEATURE - Use IdentificationTypes in receive-services

Preparation for Link 3, remove "EdiPortal-ID" from partner and only use identifycation type and id

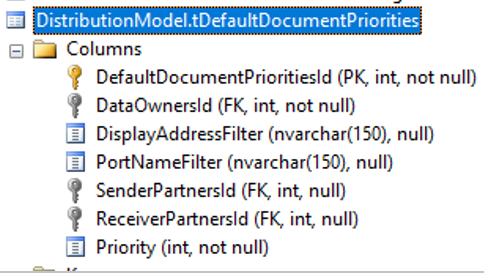

FEATURE - Set priority for documents sent directly to Inbox

By default documents that come in from receive site directly to Inbox don't have any priority.

This can be helped with this table to configure specific scenarios where we want to make sure a priority is given:

FEATURE - ServiceWindow for Inbox-polling for specific dataowner

New DataownerKey IsServiceWindow can be set to true, to stop processing documents for a given dataowner. This can be used when the dataowners other systems are down for maintenance. Importent to use priorityqueue so every document passed through inbox

  • Will not require restart to stop moving documents from status inbox to Inboxqueue


FEATURE - Save empty fields in conversion table

To make sure that previous method that return a row as key value will return key for all cloumns

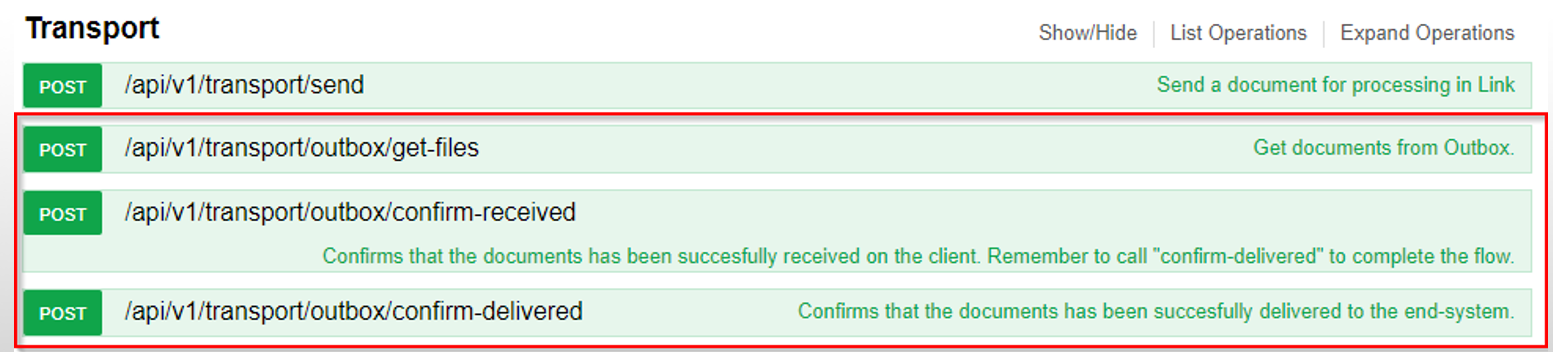

FEATURE - REST API Get From Outbox

Get documents from Outbox or implement Async Send using the REST interface:

FEATURE - Rest API - Better Authorization logging

Log additional information for when authentication fails. Is it caused by expired token or what is the actual cause.

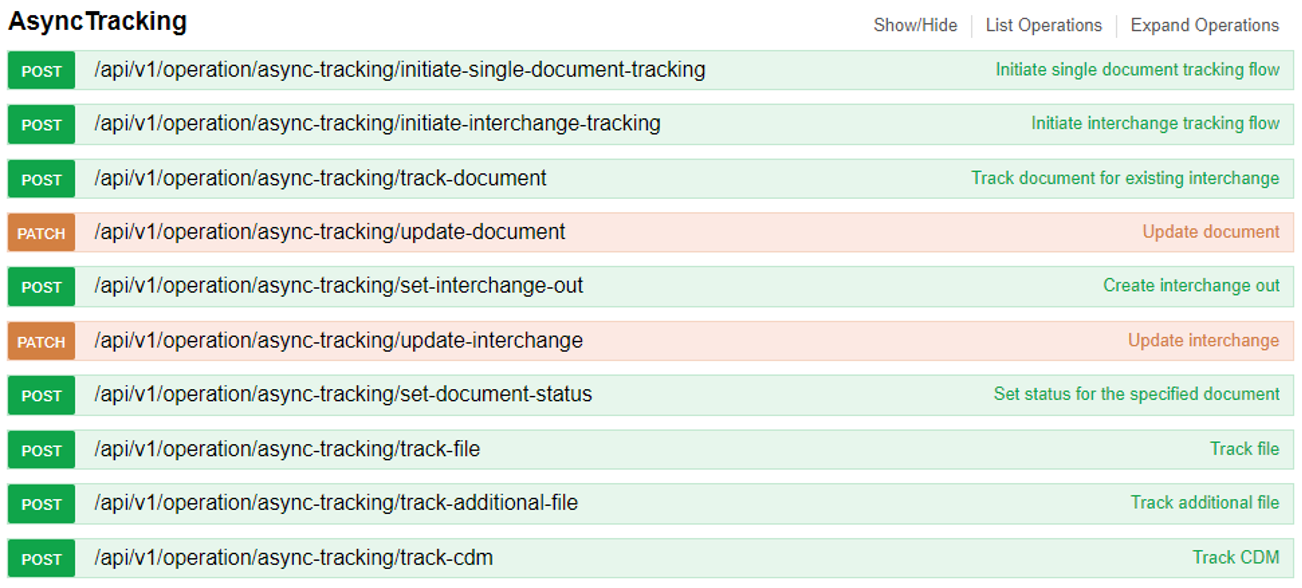

FEATURE - Public API async tracking
  • Track based on guid – dont wait for id
  • Track even while Link is being updated, in which case the data is put in buffer sql and syncronized later.

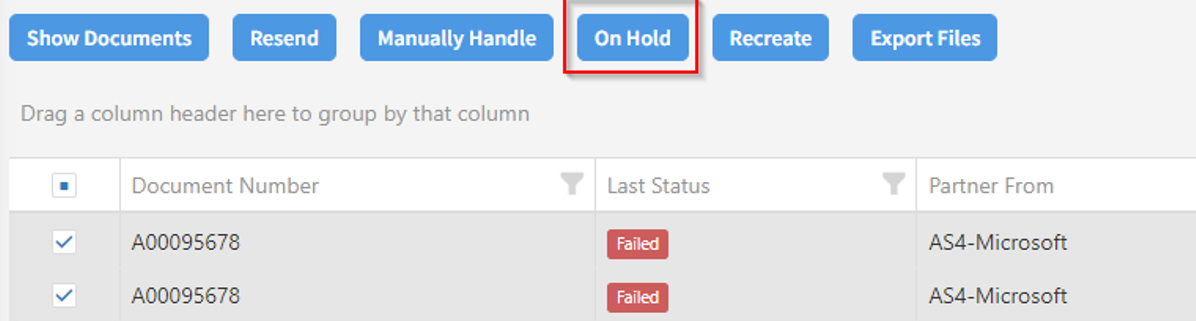

Not ready to manually handle your documents? Put them ”On Hold” so they are easy to find again

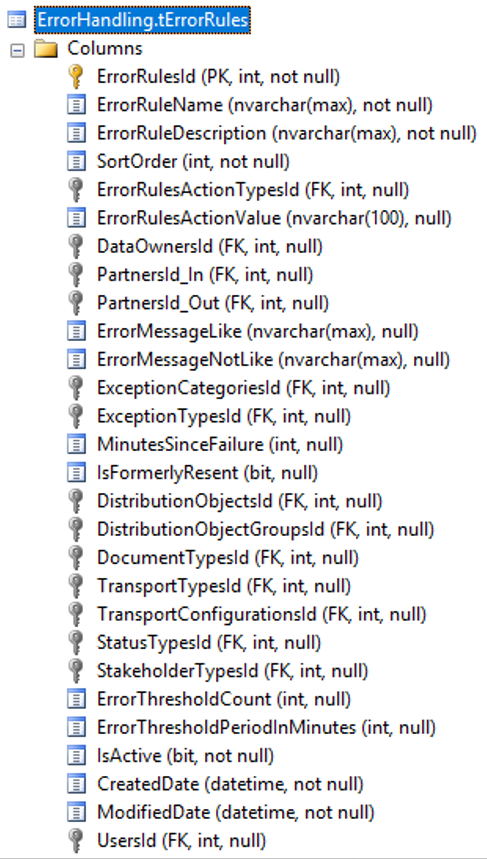

Configure error actions based on what different fields contain, just like when you configure email rules. Unfortunately No GUI is available yet.

You can choose from the following actions when the rule apply

  • SetStatus
  • SetStakeholder
  • Resend
  • Recreate


FEATURE - Enable Configuration Keys in Stakeholder emails

Optional includ macro to represent a configuration key in the mail subject templates. Could e.g. be used to add a general configuration key for at Distribution called SLA, and then includ the value of this in the mail subject.

FEATURE - Cleanup Link Document_StatusTypes with new setting in tDataBackup

3 additional fields have been added to tDataBackups, to make it possible to free up additional space by keeping specific data for a shorter period:

  • DaysToKeepAdditionalFiles - Theese are often only additional log files, and recommended number of days to keep would be 90 days.
  • DaysToKeepDocumentFlowStatus - Theese are the more technical status in the status list, like "TransformToCdm Startet" etc. Often only needed for a short period. Recommend to keep 90 days.
  • DaysToKeepTransportLogIn - Before it was actually cleanup each nigt, but it would be recommended to keep for e.g. 90 days.
FEATURE - Better filter options when choosing test-cases in Test Tool

When you have a lot of test cases, this filter option will help you

Option to enable Azure AD for enabling/disabling users in Link and doing autorization.

FEATURE - AS4 - Additional Partner Identification

Additional fields for AS4 transport type to be able to override the sender/receiver partners AS4 id's.

FEATURE - AS2 improvements - Certificate overlap/fallback

When you need to update your own certificate, it can be hard to get all your partner to update your certificate at the same time. Now you can have a period with 2 valid AS2 certificates. This will work as a fallback, so in case the certificate with start date closest to todays date don't work, it will fallback to the other certificate. This will give your partner a timespan to update the certificate.


Bugs

RestApi Conversion Table lookup

Lookup for non partner specific values also return partner specific values

InitConfiguration was mapped to wrong PortConfiguration

For the new Polling/Inbound transport, when doing the Init configuration it was saved in the wrong field

Inbox concurrency issue (same document retrieved multiple times)

Bug in the job for EnqueueInboxDocument that made it possible for the same document allready being polled from InboxQueue to be placed in Inbox again. Application lock is now done across the procedure for GetFromInbox and EnqueueInboxDocuments to make sure this cannot happen.

EdiPortal_LoggingUpdateLog failed due to text being longer than 100 characters.


View Interchange Log File fails

Only when the transport log is referred as a UNC path instead of a guid to the archive. This is fixed but only relevant for the FTP transport log.

Users not allowed to open Distributions

To view at distribution it was suddendly in 2.11 required to have the permission "Transport Locations View Incoming Location List". This is now fixed.

Transport - GetFormatTypes requires developer permissions

Access to Init Configuration in Inbound Transport will now grant you access to pick a partner, distribution or format type as well

Tracking filter/search persist between searches


SQL CPU Performance issues with many documents in Outbox

Query has been optimized.

SchedulerService logging

Log is now always saved.

REST API - Conversion Table - Row Lookup - Partner specific record is returned if marked as default even though the that partner is not specified in the lookup arguments

Now a partner specific default marked row will not be returned unless searching for that specific partner.

Monitor Service - Service appears blank on first load on Monitor Config

Has now been fixed.

Monitor - Keeps suppressing items

When suppress error once is setup on a monitor item, it would suppress once, then output the error, then suppress again. Suppress will now only be done again after the monitor item has been successfuld in the meantime. Otherwise you might get a false green lamp when you look at it.

Maintenance job fails after ErrorRules framework implentation

Fixed.

Maintenance job deletes files it shouldn't have

In the second it runs it checks for unreferenced files, now it has been changed to only delete unreferenced files older than one day, to make sure its not deleting a file that just arrived.

LinkViews bliver ikke oprettet i "Views" under "EdiPortal.Tools" databasen under installation af Link

They do now.

Link Polling - FTP/SFTP Adapter - Error if Filemask is not filled out

Filemask is now required.

Link partner File location fails if it ends in whitespace

Leading or trailing white spaces are now removed.

Link monitor types registered with wrong fully qualified name

Only aplicable for cleaninstall. Has now been fixed.

Job LoggingUpdateLog fails - Conversion failed when converting from a character string to uniqueidentifier

Will not fail but return null.

Installer fail to substitute values in web.config and IIS site bindings

Fixed.

Ingoing transport log is cleanup every night

Fixed by implementing configuration in tDatabackups for configuring how many days to keep ingoing transport log.

Incoming transport location - Init config doesn't get written to context

It does now.

Incoming transport - Transport_Action_IncommingLocation_Edit wrongly named

Permission name misspelled. Has been corrected.

Import/Export has changed on values that should not have been changed

Alternative name could be problematic to move use export/import. This have now been improved. However you still need to manully delete alternative names.

If an error occours commiting Link initial save a context with a documentsId still exist when passed to error handling which causes the errorhandling til fail

Errorhandling will no longer fail but save the messag to Inbox.

GUI window search overview dont disappear for Reports when creating new

FormatException in SFTP adapter if brackets are used in filename

Fixed

ErrorRules log

Error rules log improved

Enable UNA not working for Seeburger and Microsoft EDIFACT assembler

UNA can now be controlled

Dropdown datafield control does not disable

It will now disable when not in edit mode.

Distribution CSV import doesnt work

Function in Admin Tool which have now been fixed

Alertmodul sender ikke mails/sms

Mail role disappeared during upgrade. This has been fixed.

Alert modul presented "Time before show" wrong.

And "spinner" keept running when adding a contact.

This has now been fixed.

Deleting an Incoming Transport location doesnt stop it

It will now.

Delete disabled user results in NullReferenceException

Has now been fixed.

Could not load any file from the Edi-Portal Document

Documents from current day will no longer be deleted by maintenance job

Conversion tables - Lookup performed with column names not existing results in error

Now an error is not thrown, but instead just 0 row.

Concurrency issue in AS4 signature validation

Fixed.

Cant't create transport location if one with same name has been deleted

Delete will now add timestamp prepended in front of name.

Browser stores values for transport-locations and other dynamic forms

If you edit a location with a password field (or configuration key of type password), there was a risk that you unintendedly overwrote the password with a password cached by your browser. This has now been fixed.

Batching ends after send and sets message to processing after send.

Now Processing is send before batching publish the message to make sure it cannot be set to Completed in the meanwhile.

AS4 - missing PMode results in DefaultDataowner

Fixed

AS2 - Keyset does not exist issue

Lock added to the location that cahces the certificate

Adapater - EdiPortalLocalFTP - SFTP Mode - uses backslash in folder-names

This worked in some cases, because some FTP servers would correct. But, it has now been fixed to use forward slash instead.

Changes in common.dll

Assembly Diff_Added.pdf Assembly Diff_Changed.pdf Assembly Diff_Removed.pdf


Performance test


LinkPerformanceTest.pdf
