AS4 Transport Type

The outgoing AS4 transport configuration page is rather large. We will go through all the configuration fields in the section below.

Before creating the AS4 location, you need to set up your Link partner who is going to receive messages through AS4 Transport.

Be sure to have set up a default Partner identification to be used for AS4 transport. See the 'Partner Identification' page in the user guide for more details on how to create Identification values.

Certificates

Certificates are stored in the Certificates store, which are found under the Certificates tab. For a receiving partner their public certificate needs to be in store.

See the 'Certificates' page in the user guide for more details on how to upload certificates.

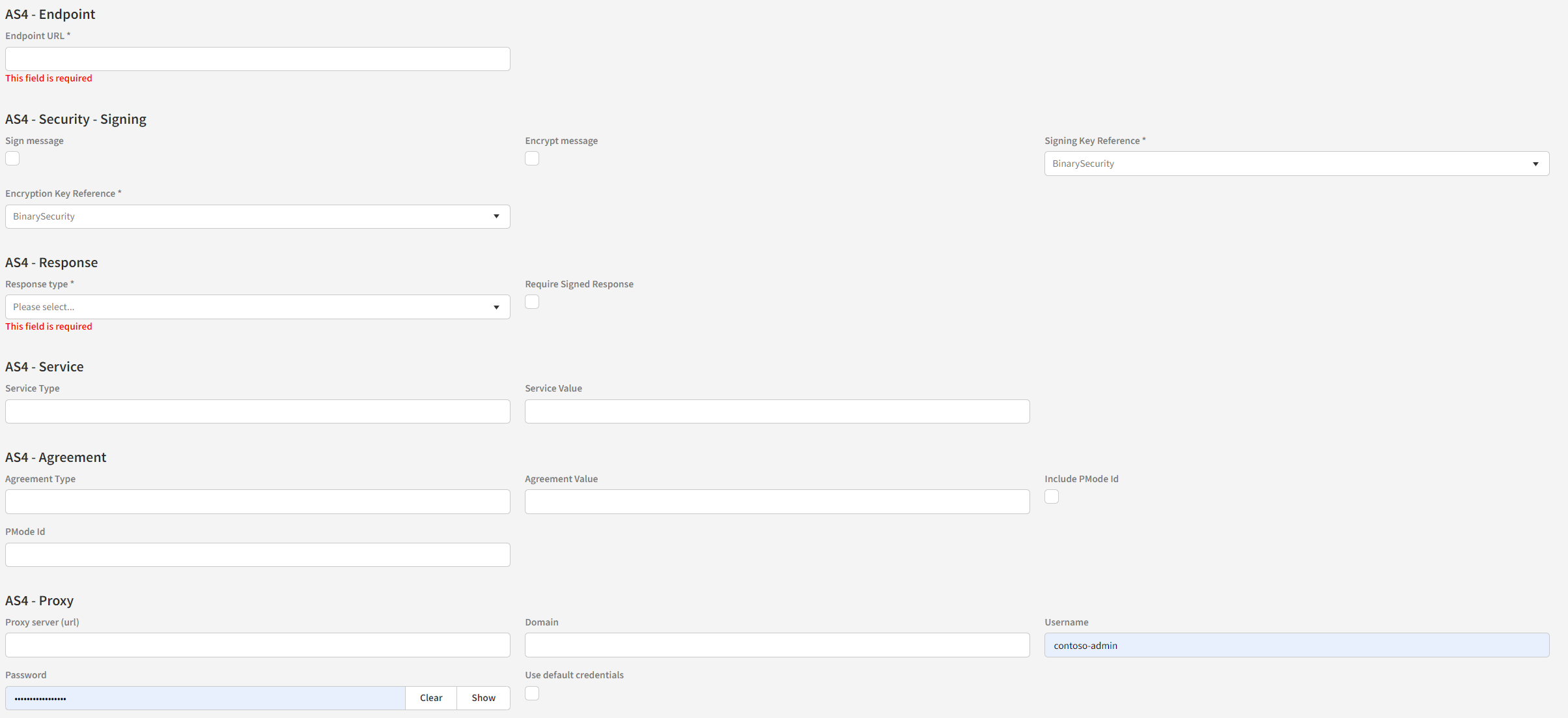

Endpoint

Endpoint URL

A URL for the webservice where the message should be delivered to.

AS4 - Security

Sign message

Defines whether message should be signed with senders private certificate.

Signing Key Reference

Select from these options to set the Signing Key Reference:

BinarySecurity (Default)

KeyIdentifier

IssuerSerial

See https://docs.oasis-open.org/wss/v1.1/wss-v1.1-spec-errata-os-SOAPMessageSecurity.htm for more information.

Encrypt message

Defines whether message should be encrypted with receivers public certificate.

Encryption Key Reference

Select from these options to set the Encryption Key Reference:

BinarySecurity (Default)

KeyIdentifier

IssuerSerial

See https://docs.oasis-open.org/wss/v1.1/wss-v1.1-spec-errata-os-SOAPMessageSecurity.htm for more information.

AS4 - Response

Response Type

Select from these options to set expected response type:

Response

Callback

Require Signed Response

Defines whether signed response is expected

AS4 - Service

Service Type and Service Value

A Key / Value pair agreed with partner

XPath:

/s12:Envelope/s12:Header/eb:Messaging/eb:UserMessage/eb:CollaborationInfo/eb:Service

Example:

<eb:Service type="http://ServiceType/service">Service</eb:Service>

AS4 - Agreement

Agreement Type and Agreement Value

A Key / Value pair agreed with partner

Include PMode Id

Defines whether PMode Id should be included in SOAP header

PMode Id

Enter PMode Id

XPath:

/s12:Envelope/s12:Header/eb:Messaging/eb:UserMessage/eb:CollaborationInfo/eb:AgreementRef

Example:

<eb:AgreementRef type="http://AgreementType" pmode="PModeID">http://AgreementValue</eb:AgreementRef>

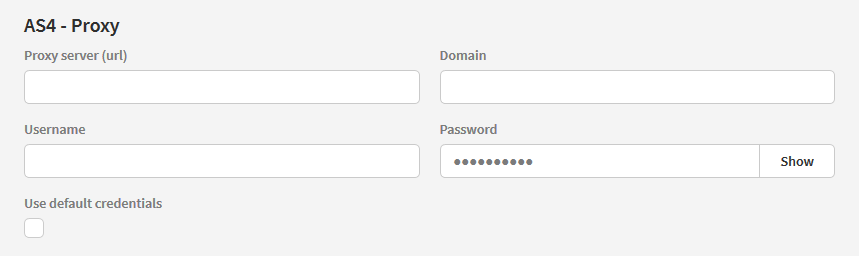

AS4 - Proxy

Enter required values for communication through a proxy server

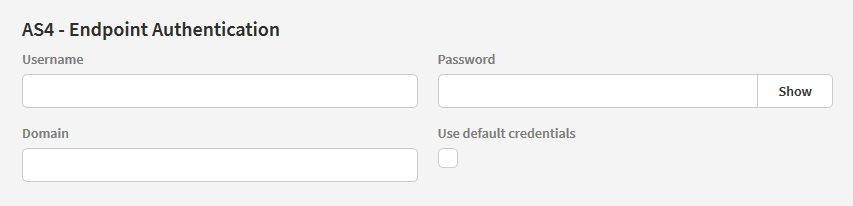

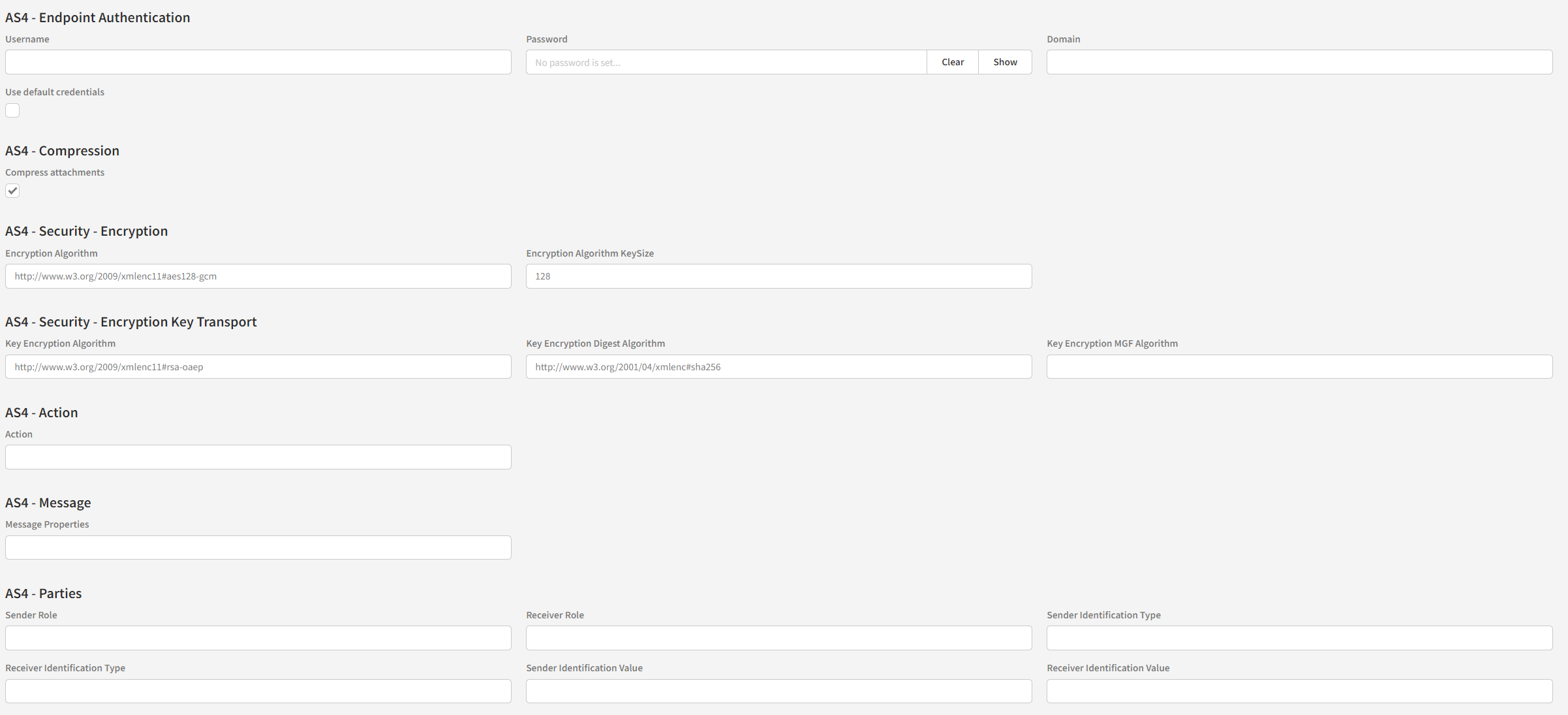

Endpoint Authentication

Enter required values if additional endpoint authentication is required

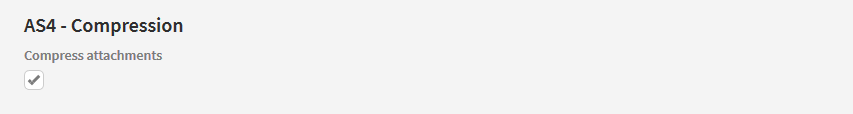

AS4 - Compression

Compress attachments

Defines whether payloads should be compressed.

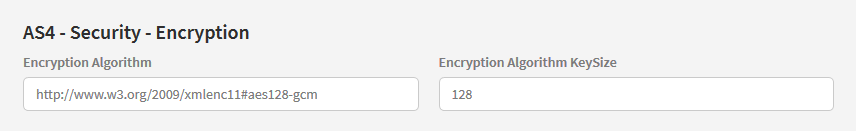

AS4 - Security - Encryption

Encryption Algorithm

Enter encryption algorithm.

Default is http://www.w3.org/2009/xmlenc11#aes128-gcm.

See https://www.w3.org/TR/xmlsec-algorithms for more information.

Encryption Algorithm KeySize

Enter encryption algorithm key size

Default is 128.

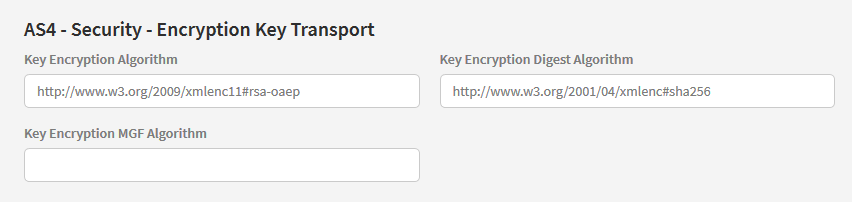

AS4 - Security – Encryption Key Transport

Key Encryption Algorithm

Enter key encryption algorithm.

Default is http://www.w3.org/2009/xmlenc11#rsa-oaep.

See https://www.w3.org/TR/xmlsec-algorithms for more information.

Key Encryption Digest Algorithm

Enter key encryption digest algorithm.

Default is http://www.w3.org/2001/04/xmlenc#sha256.

See https://www.w3.org/TR/xmlsec-algorithms for more information.

Key Encryption MGF Algorithm

Enter key encryption MGF algorithm.

See https://www.w3.org/TR/xmlsec-algorithms for more information.

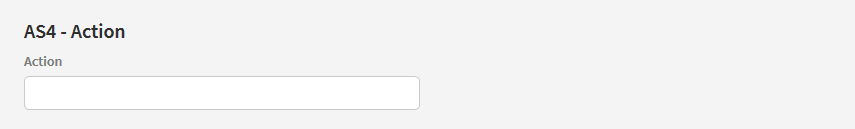

AS4 - Action

Action

Enter Action agreed with partner

XPath:

/s12:Envelope/s12:Header/eb:Messaging/eb:UserMessage/eb:CollaborationInfo/eb:Action

Example:

<eb:Action>http://docs.oasis-open.org/ebxml-msg/as4/200902/action</eb:Action>

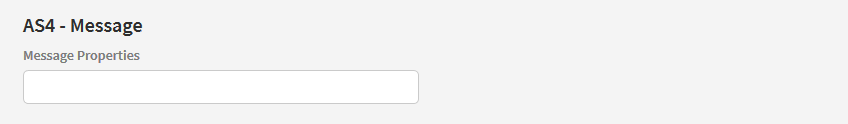

AS4 - Message

Message Properties

Additional message properties as key / value pairs. Separate by ‘##’.

[key]=[value]##[key]=[value]##[key]=[value]

XPath:

/s12:Envelope/s12:Header/eb:Messaging/eb:UserMessage/eb:MessageProperties/eb:Property

Example:

<eb:Property name="key1">value1</eb:Property>

<eb:Property name="key2">value2</eb:Property>

AS4 - Parties

in this section, you have the possibility to overwrite role, identification type and/or identification value for the receiver and/or sender party.
